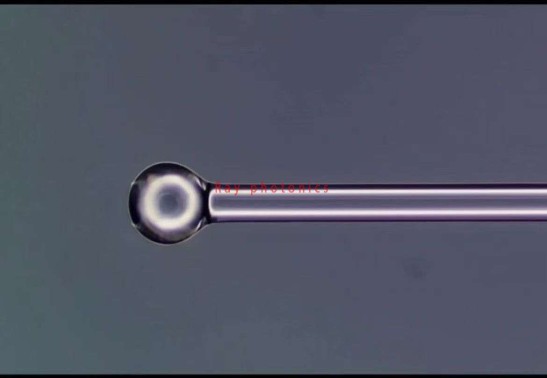

Ball Lensed Fiber

Ball Lensed Fiber

Ball  Lensed  Fiber

Products

image.png      image.png




Parmeters

Unit

Values

Typical Values

Tolerances

Nominal Beam Waist Diameter(BW)

um

10~100±5um

10,50,100

±5

Working Distance

mm

0.2≤WD≤7(±20um)

0.2,0.5,3,7

±20

Spherical Lens Diameter

mm

120-300(±10um)

120,165,250,300

±10

Fiber Type

-

SM

NA

NA

Coating Diameter

mm

250-400

250,400

NA

Cladding Diameter

mm

125-250

124,250

NA

Stripping Length

mm

5±1,customized

5

±1
