we provides a broad range of prisms including right angle prisms, penta prisms, dove prisms, roof prisms, Corner Cube Retro-reflectors, Anamorphic prisms and wedge prisms.

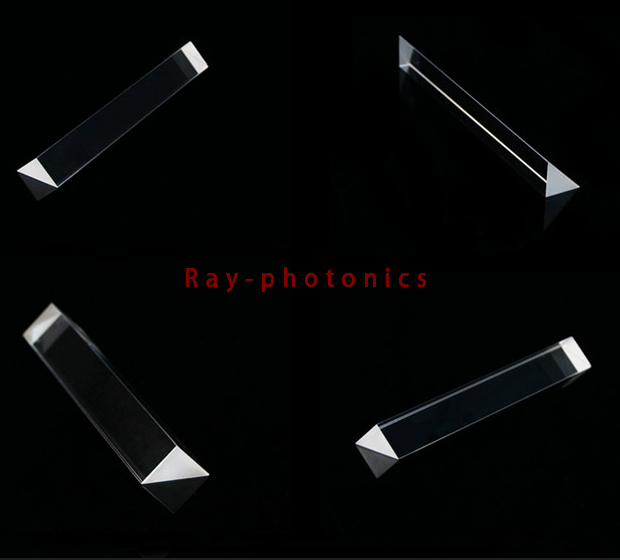

Right-Angle Prisms
Capability:
Attribute | Commercial | High Precision |
Material | N-BK7, Fused Silica and other optical glass |
Dimension Tolerance | +0.0,-0.2mm | +0.0,-0.05mm |
Clear Aperture | >85% | >90% |
Angle Tolerance | 土30" | 土5" |
Flatness | Per 25.4mm λ /4@632.8nm | Per 25.4mm λ /10@632.8nm |
Surface Quality | 60-40 scratch and dig | 20-10 scratch and dig |
Protective Bevel | (0.2-0.5)X45° mm | (0.05-0.2)X45° mm |
